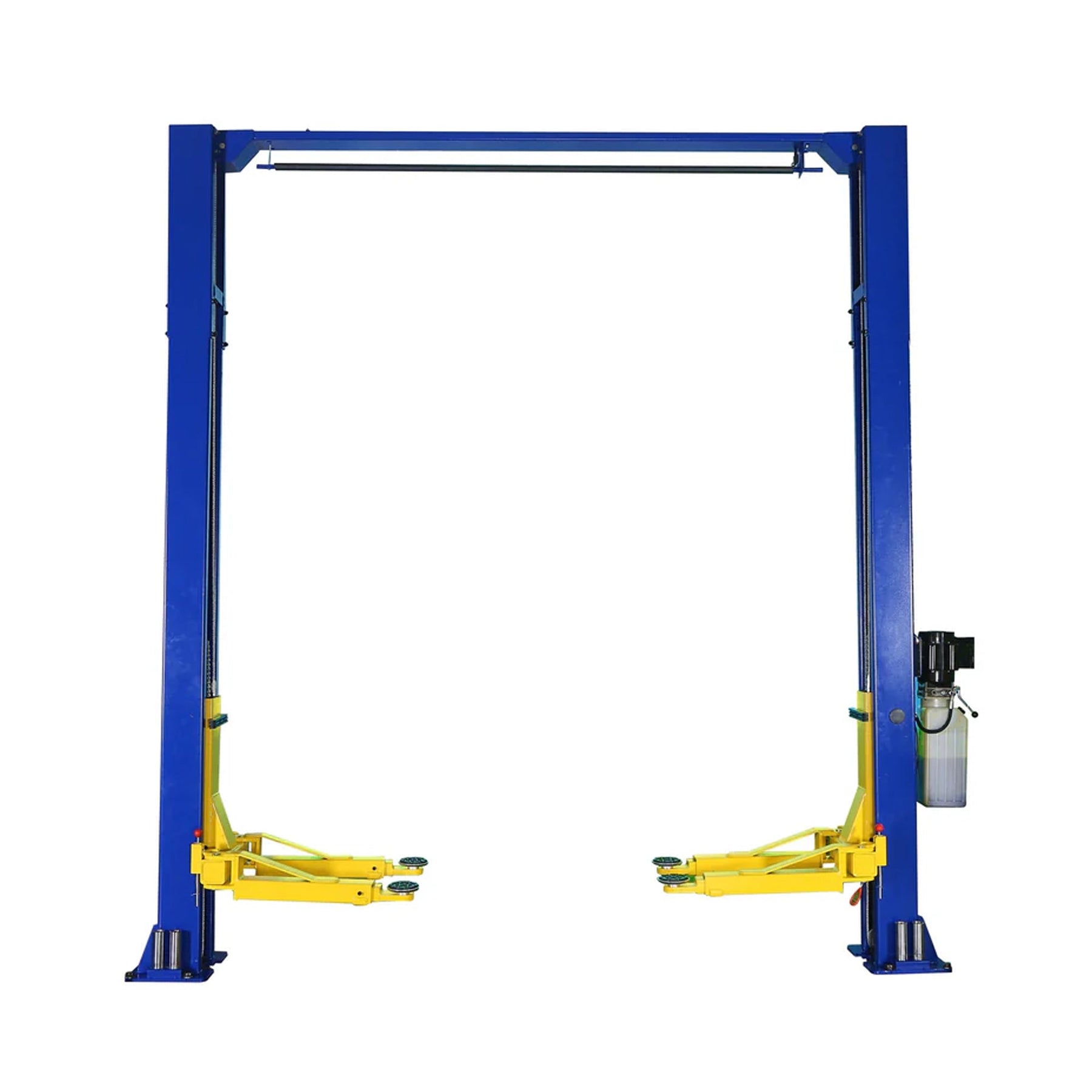

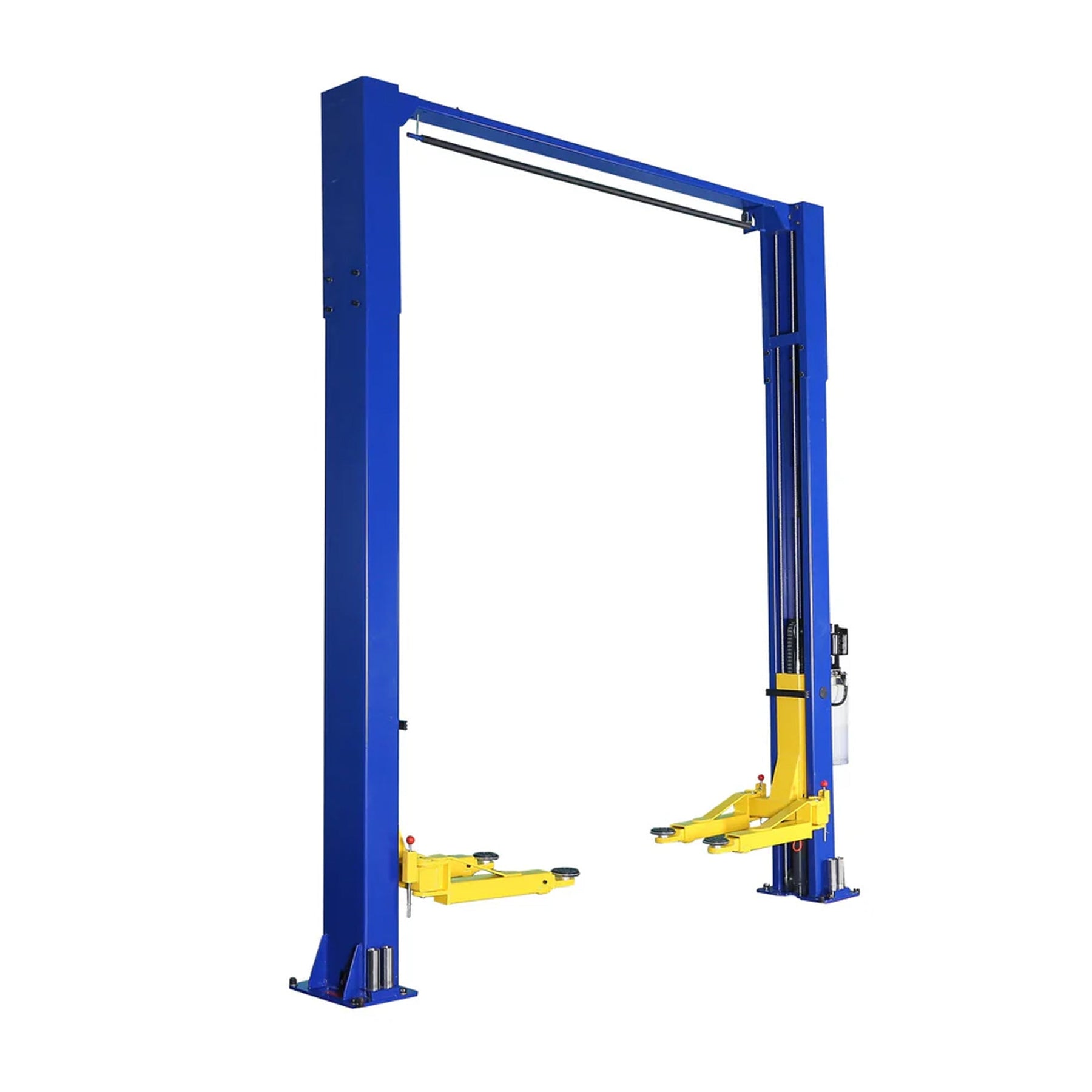

APlusLift HW-9KOH 9,000LB 2-Post Over Head Car Lift
★★★★★
4.9 (18 Reviews)
Regular price
£1,099.99
Sale price£889.99
Save £210.00
/
Tax included.
Shipping calculated at checkout.
- In stock, ready to ship
- Inventory on the way
Premium Quality
Built to last
30-Day Returns
Hassle-free
Free Shipping
On orders over £100
Secure Checkout
Encrypted and safe
All 2-Post Car Lifts
-
6’9″ Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish
-
Double Seal Rings Protecting PU Material
APlusLift HW-9KOH is a 9,000 LB overhead 2-post car lift.
Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.
Front ArmsStraight Front 2 Stage reach from 30 1/8″ to 45 3/8″Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″
Specifications |
|||||||||
| Model | HW-9KOH (This Model) |
HW-10KOH-A (for Comparison) |
|||||||
| Manual | HW-9KOH Manual | HW-10KOH-A Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Double Point Release | Double Point Release | |||||||
| Lifting Capacity | 9,000 LB | 10,000 LB | |||||||
| Overall Height | 143 3/16″ | 143 3/16″ | |||||||
| Overall Width | 134 5/16″ | 134 5/16″ | |||||||
| Maximum Lift height with Truck Adapters | 81″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 75″ | 75″ | |||||||
| Minimum Height of Arm Top | 4″ | 4″ | |||||||
| Carriage to Carriage Width (Drive-through clearance) | 100″ | 100″ | |||||||
| Column to Column Width | 109″ | 109″ | |||||||
| Column Cross Section | 11″L x 7″W | 11″L x 7″W | |||||||
| Shipping Weight | 1300 LB | 1470 LB | |||||||
| Shipping package size | 113″L x 40″W x 22″ H | 113″L x 22″W x 40″ H | |||||||
| Concrete Requirement | 4″ at 3500psi reinforced with fiberglass or steel | 6″ thick at 3500 psi reinforced with fiberglass or steel | |||||||
| Arm Assembly | Symmetrical Arm Assembly | Combo (symmetrical and asymmetrical) Arm Assembly | |||||||
| Rear Arms | Straight Rear 2 Stage reach from 30 1/8″ to 45 3/8″ | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | ||||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 20A breaker) | ||||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | ||||||||
| Time to full rise | 50 seconds | ||||||||
| Parts Included |
|
||||||||
| Stiffened Base Plate Thickness | 5/8″ | ||||||||
| Model | HW-9KOH (This Model) |
HW-10KOH-A (for Comparison) |
|||||||
Features
- Equal length of front and rear arm design
- Double point safety lock release
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/10″ diameter cable and 4 1/5″ pulley that reduce high stress on synchronization process and increase cable life

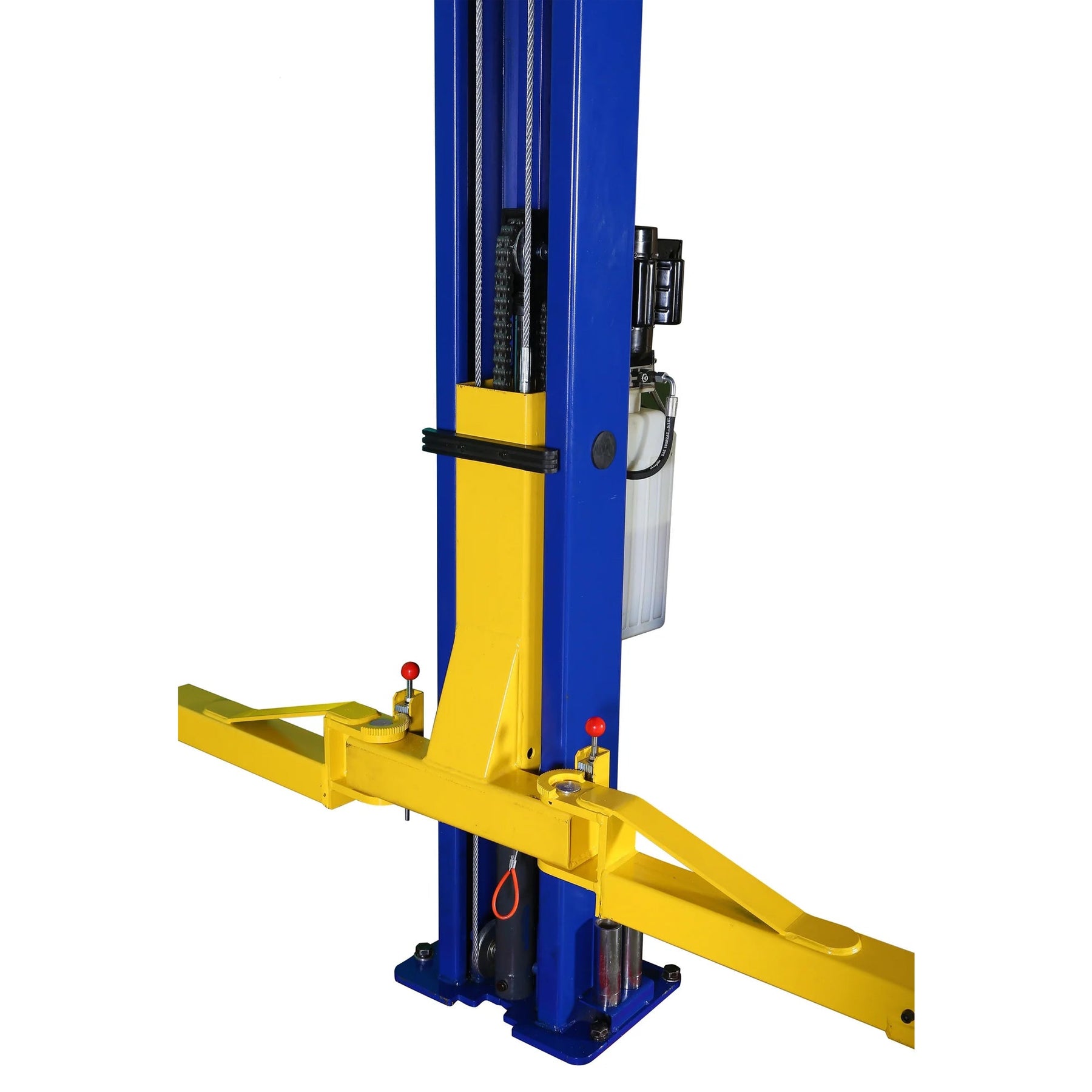

- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
