APlusLift ABJ-40 4000LB Air Operated Rolling And Sliding Bridge Jack

All 4-Post Lifts and Jacks.

• Switch between Rolling Jack and Sliding Jack As Needed with the Included Conversion Kit.

• Minimum Lifting Height 1/8″ (See Diagram)

• Two Adjustable Screw Pads and Two 4″ Tall Truck Adapters Included

• Long Arm Extensions: 27″ – 62 3/8″

• Adjustable Width to fit most service and storage lifts

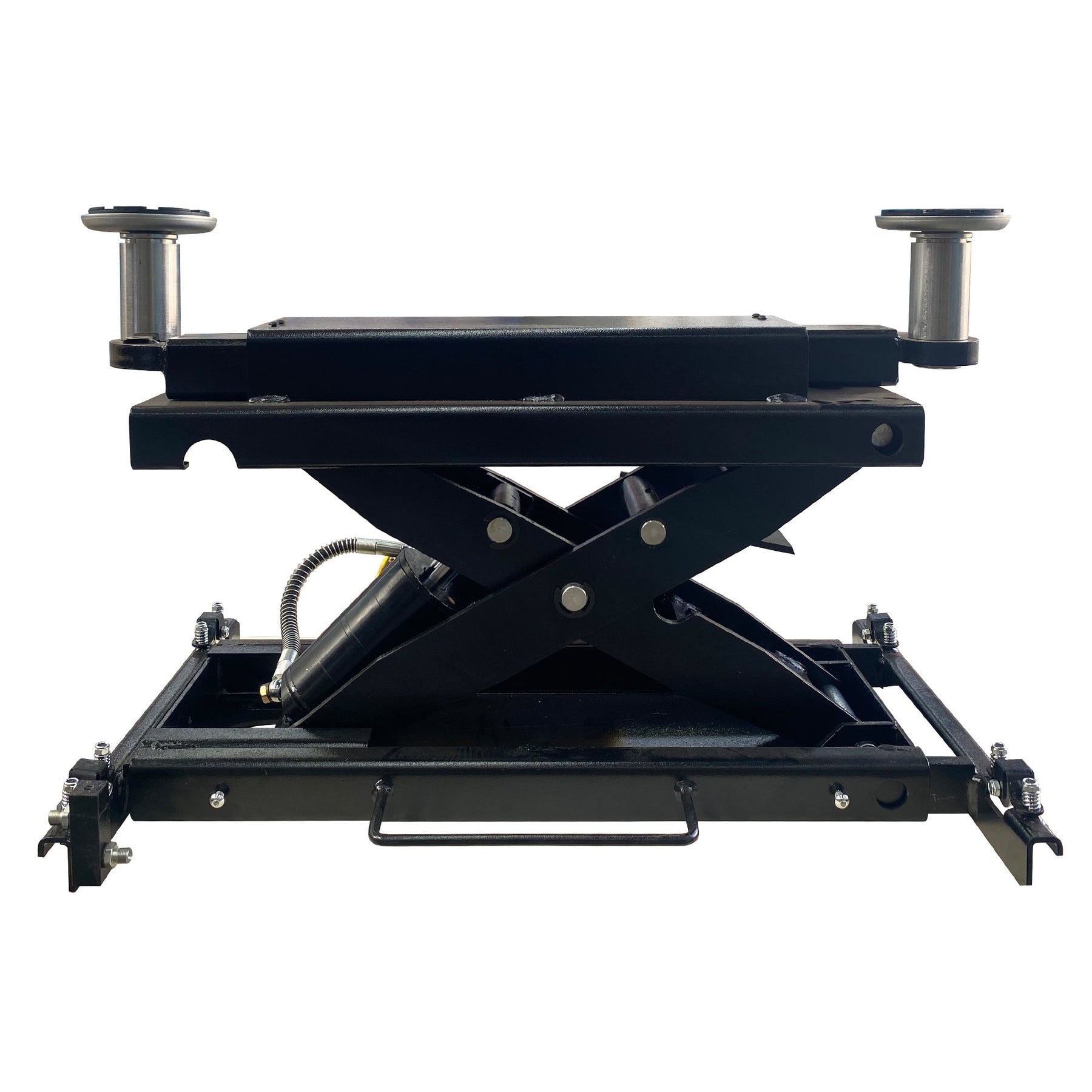

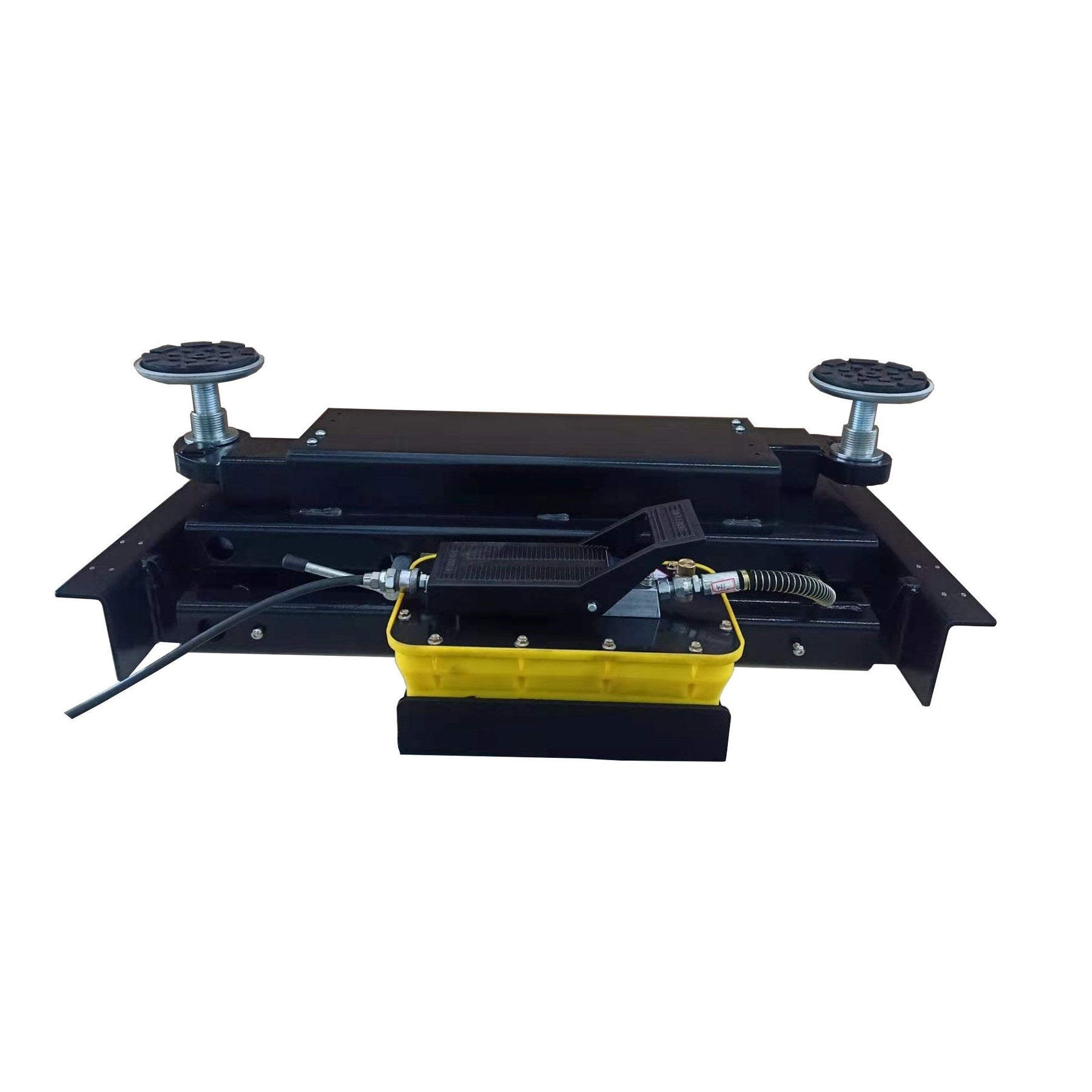

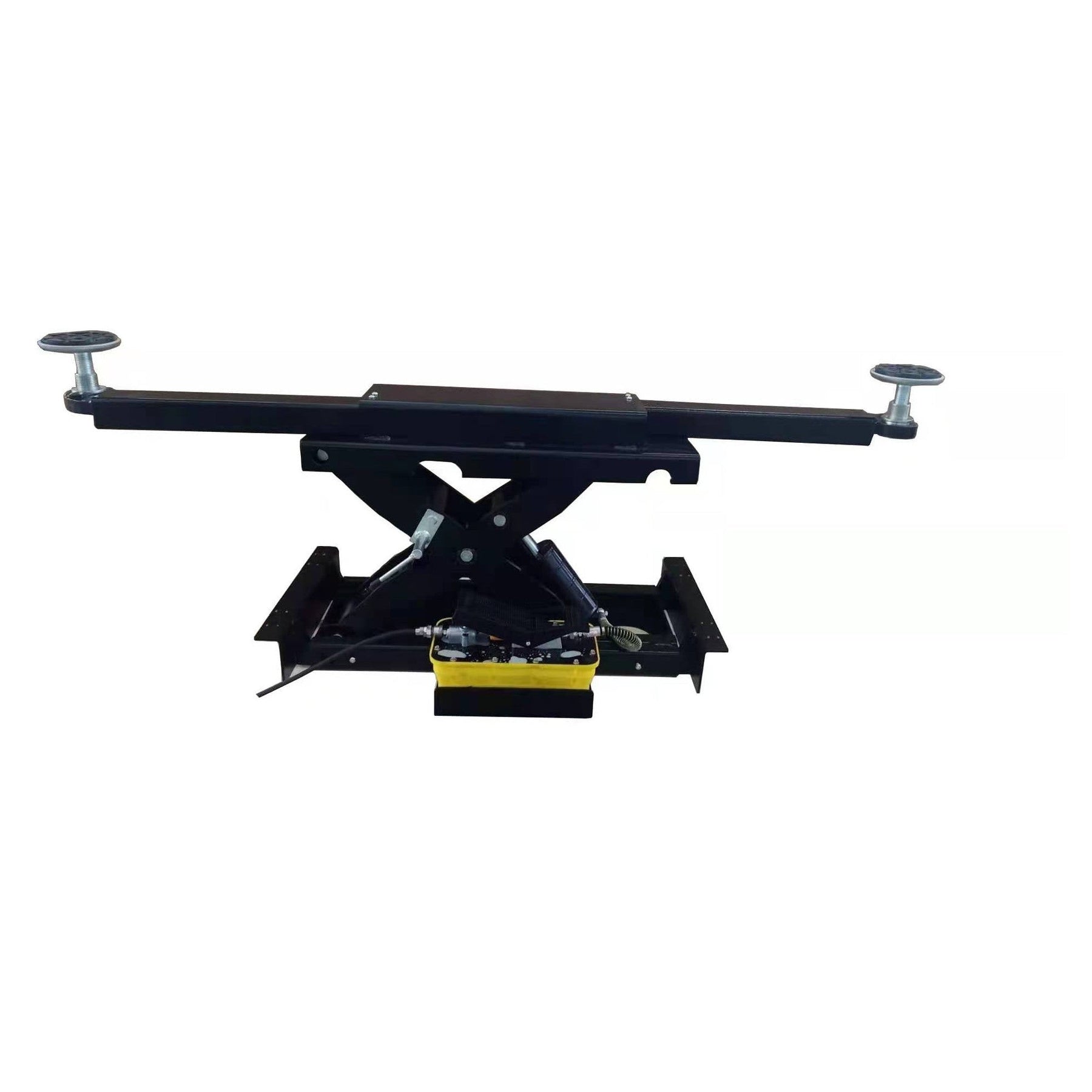

The APlusLift 4000 lb air-operated sliding and rolling jack (ABJ-40) includes a conversion kit, allowing it to function as either a sliding or rolling jack at will. It is an ideal addition to a 4-post storage lift, enabling efficient wheel and brake services by lifting the front or rear of a vehicle. The ABJ-40 features telescoping support arms and adjustable screw pads to accommodate the lifting height of most vehicles. Optional truck adapters (height extensions) are available if needed.

Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.

Specifications and Features

• Model: ABJ-40
• Installation Manual: ABJ-40 Manual
• Operation Mode: Air Operated
• Type: Rolling and Sliding Jack
• Lifting Capacity: 4,000 LB
• Overall Length: 33″ – 68 3/8″
• Distance Between Arm Pads: 27″ – 62 3/8″
• Overall Width: 18 1/8″
• Lifting Height: See diagram
• Hydraulic Oil: 0.5 gallons of AW32
• Air Requirement: 90-120 psi (ABJ-40 only)
• shipping Weight: 300 LB
• Shipping Dimensions: 40″L x 24″W x 11″H
• Two Adjustable Screw Pads Included
• Two 4″ Tall Truck Adapters Included
• The adjustable width of the jack makes it fit almost all service and storage lifts
