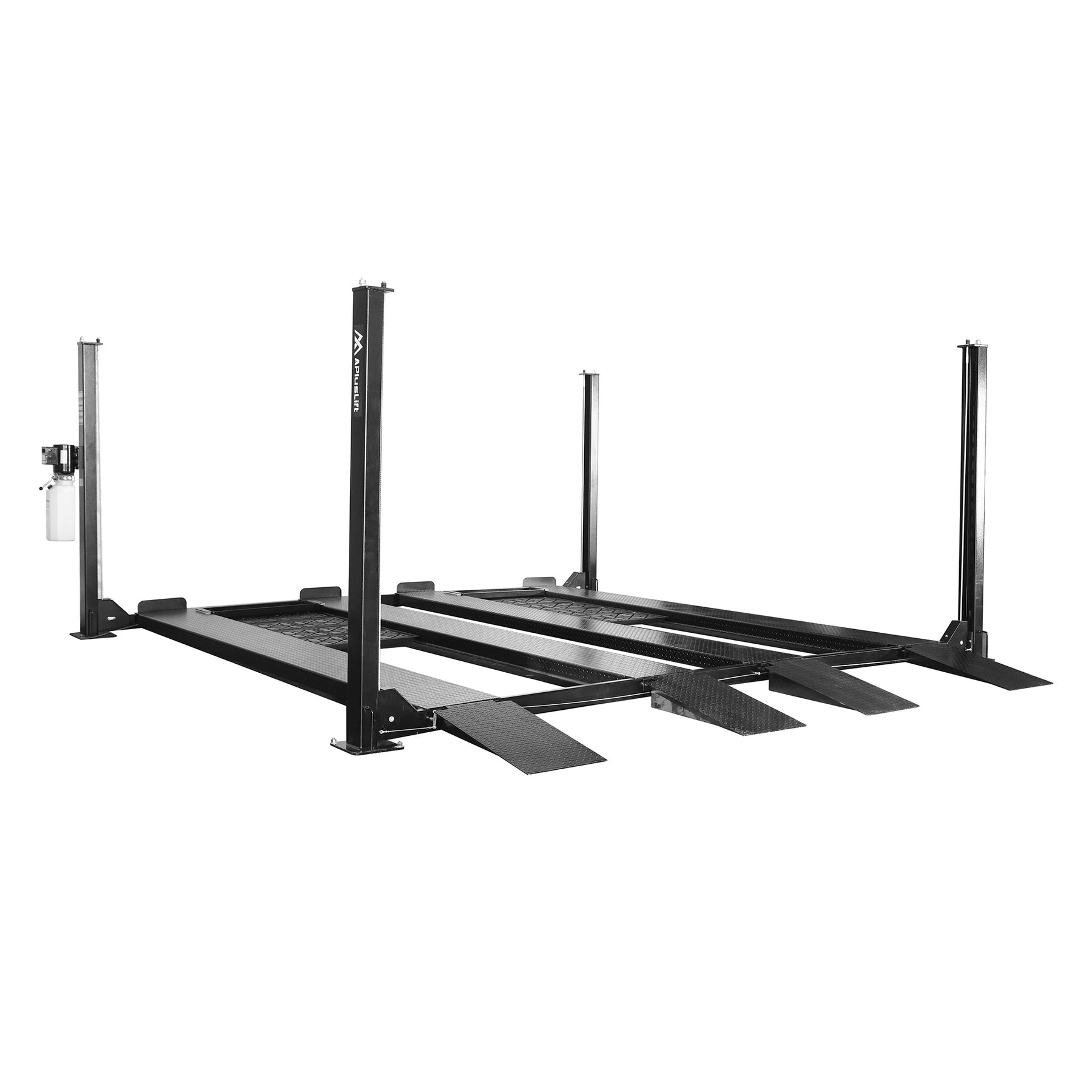

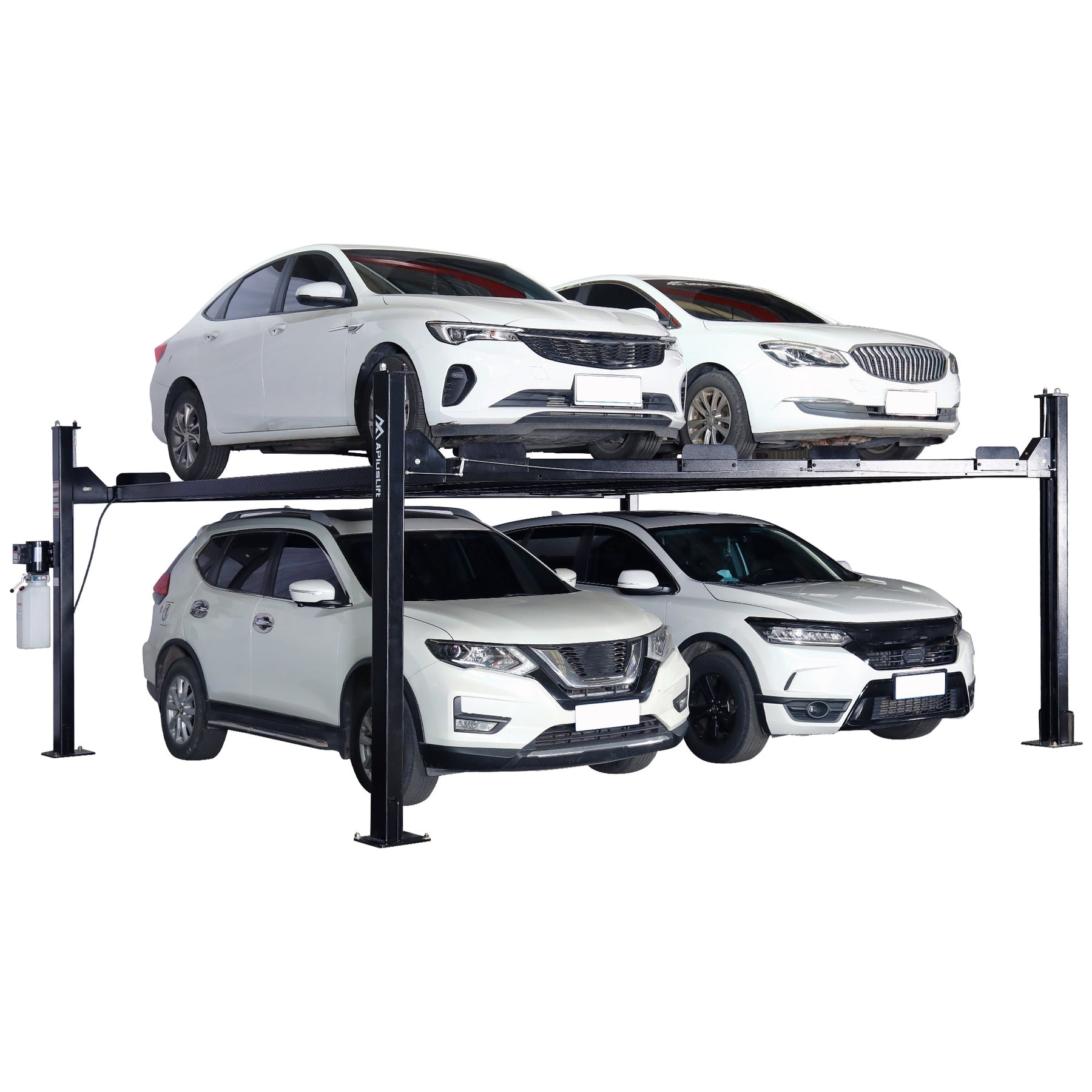

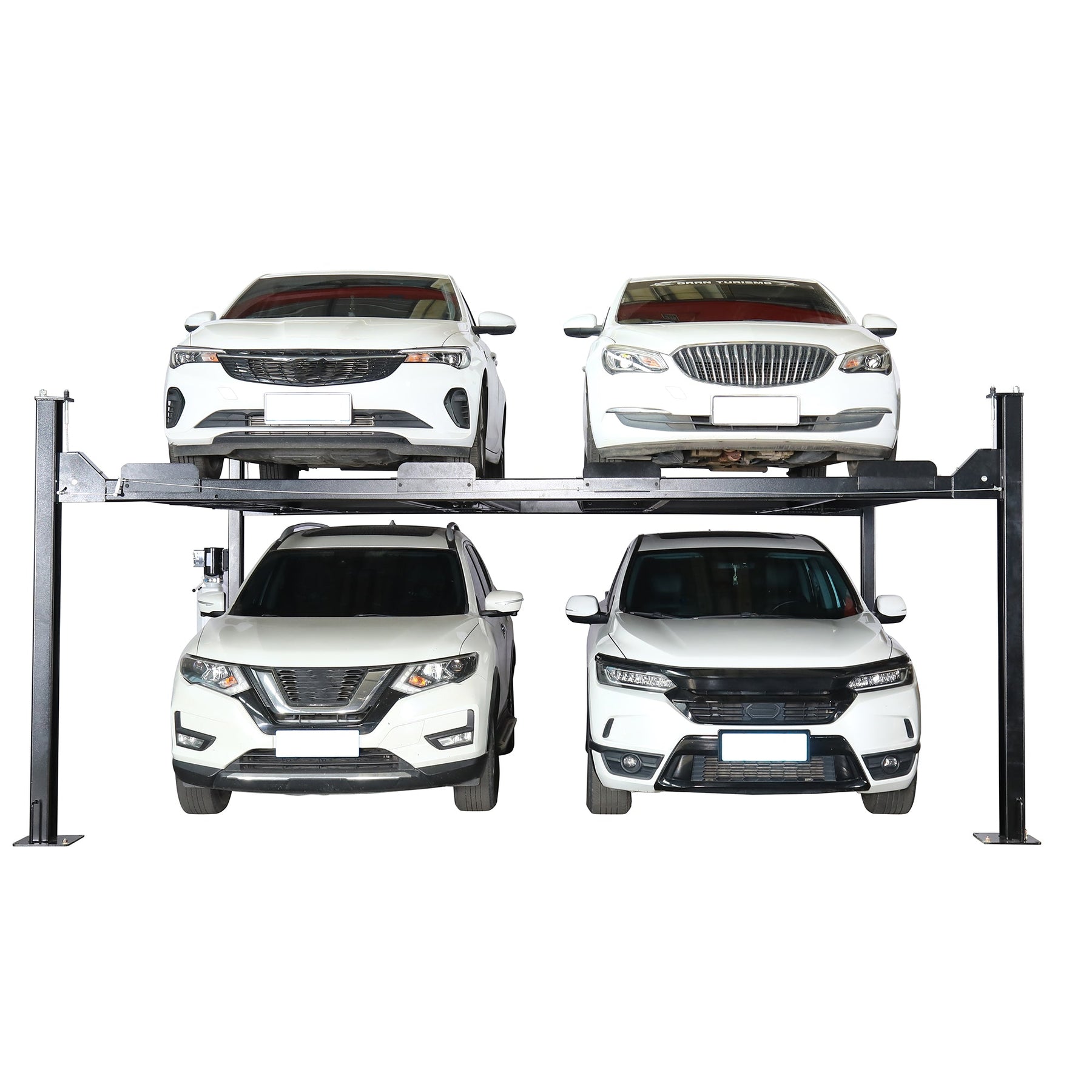

APlusLift 9,000LB 4-Post Double Deck Parking Storage Car Lift – HW-9KDP

All 4-Post Lifts and Jacks.

• Column to Column Width 190″; Lifting Height 82″; Overall Dimensions 230″L x 210″W x 96″H

• Caster Kit, 2 Jack Trays, 6 Drip Trays, 4 Removable Approach Ramps, and a Power Cord Included.

• Powder Coated Finish with Superior Corrosion Resistance

• CE Certified Lift Structure and Hydraulic System

APlusLift HW-9KDP 4-post Double Decker Parking Lift is designed and built to commercial grade standards. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

APlusLift HW-9KDP 4-Post Lift includes 2 decks, 4 runways, a caster kit, 2 jack trays, 6 drip trays, and 4 removable approach ramps.

Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.

Specifications and Features

• Installation Manual
• Lifting Capacity: 9,000LB
• Usage: Parking/Storage/Service
• Powder Coated Finish with Superior Corrosion Resistance
• 4 Approach Ramps Included
• Overall Length: 230″ with ramp or 194″ without ramp
• Overall Height: 96″
• Overall Width: 210″
• Lifting Height: 82″
• Clearance Under Runway: 74″
• Width between Posts: 190″
• Drive Through Width: 93″x2
• Runway Size: 184″L x 19″W
• Width Between Four Runways: 37 3/8″ – 19 11/16″ – 37 3/8″
• Approach Ramps Size: 36″L x 19″W
• Lifting Time: 50 seconds
• Motor: 110V Single Phase 1.5HP 10A (recommend a 20A breaker)
• Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
• Concrete Thickness: 4″ 3000psi
• Shipping Weight: 2,850LB
• Shipping package size: 210″L x 22″W x 36″H
