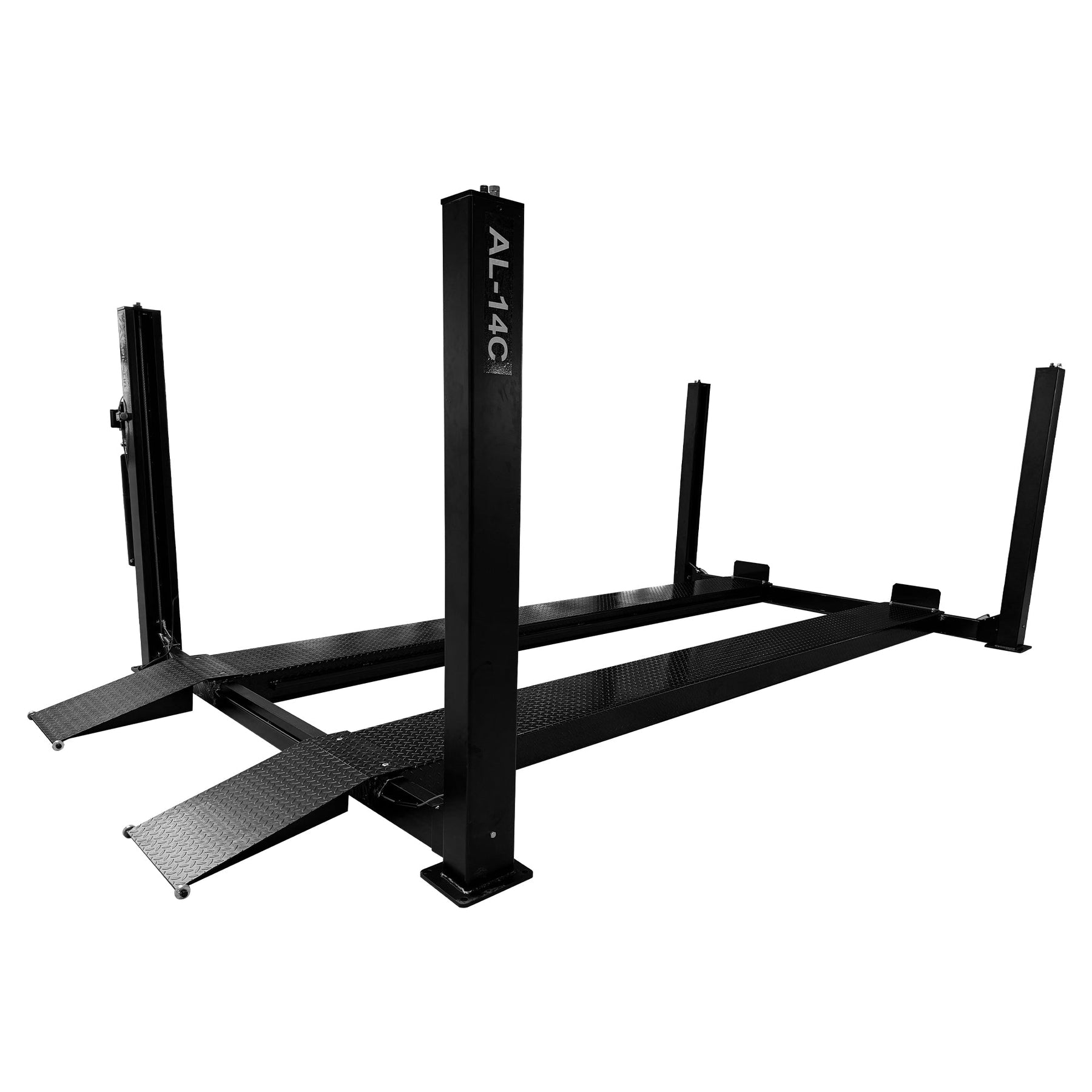

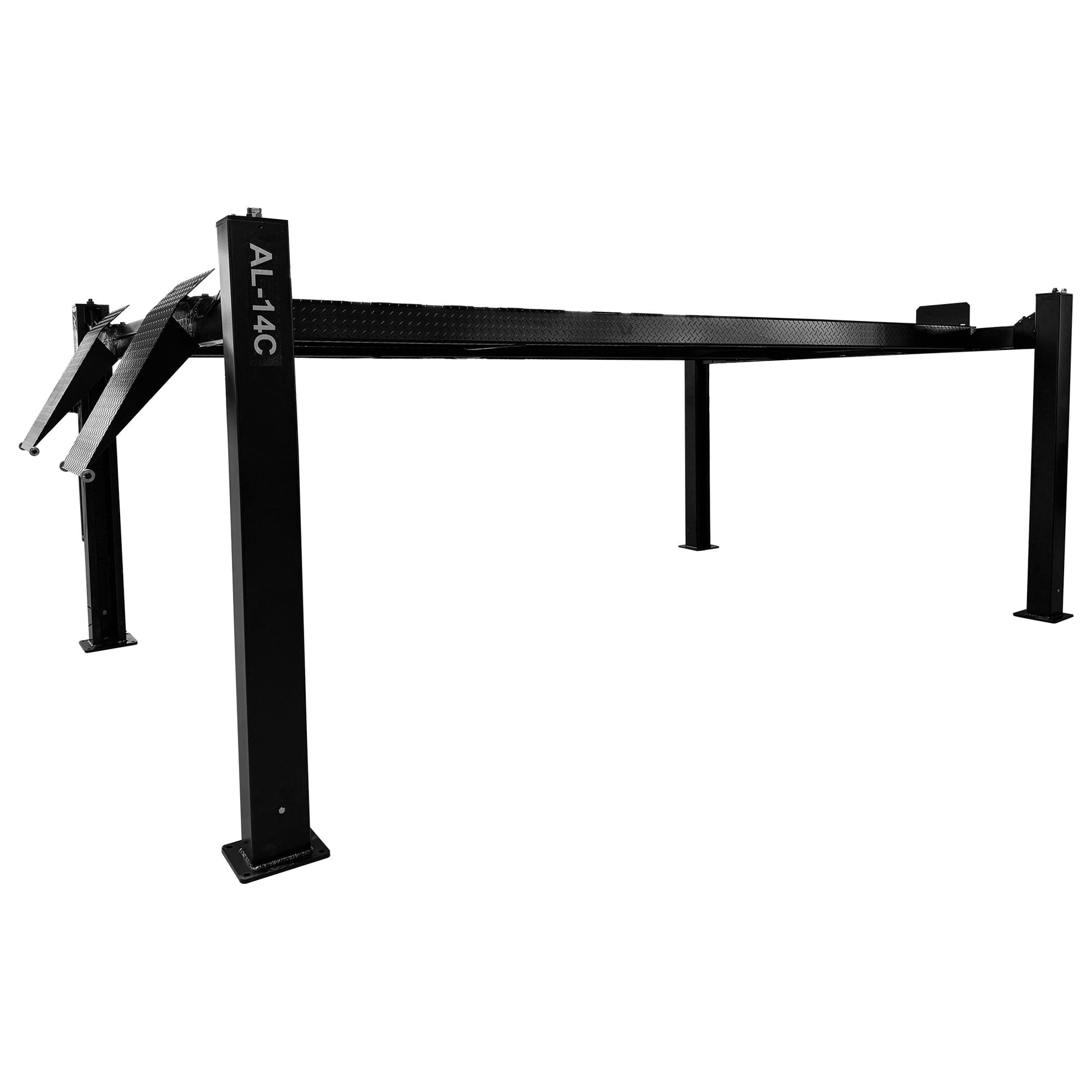

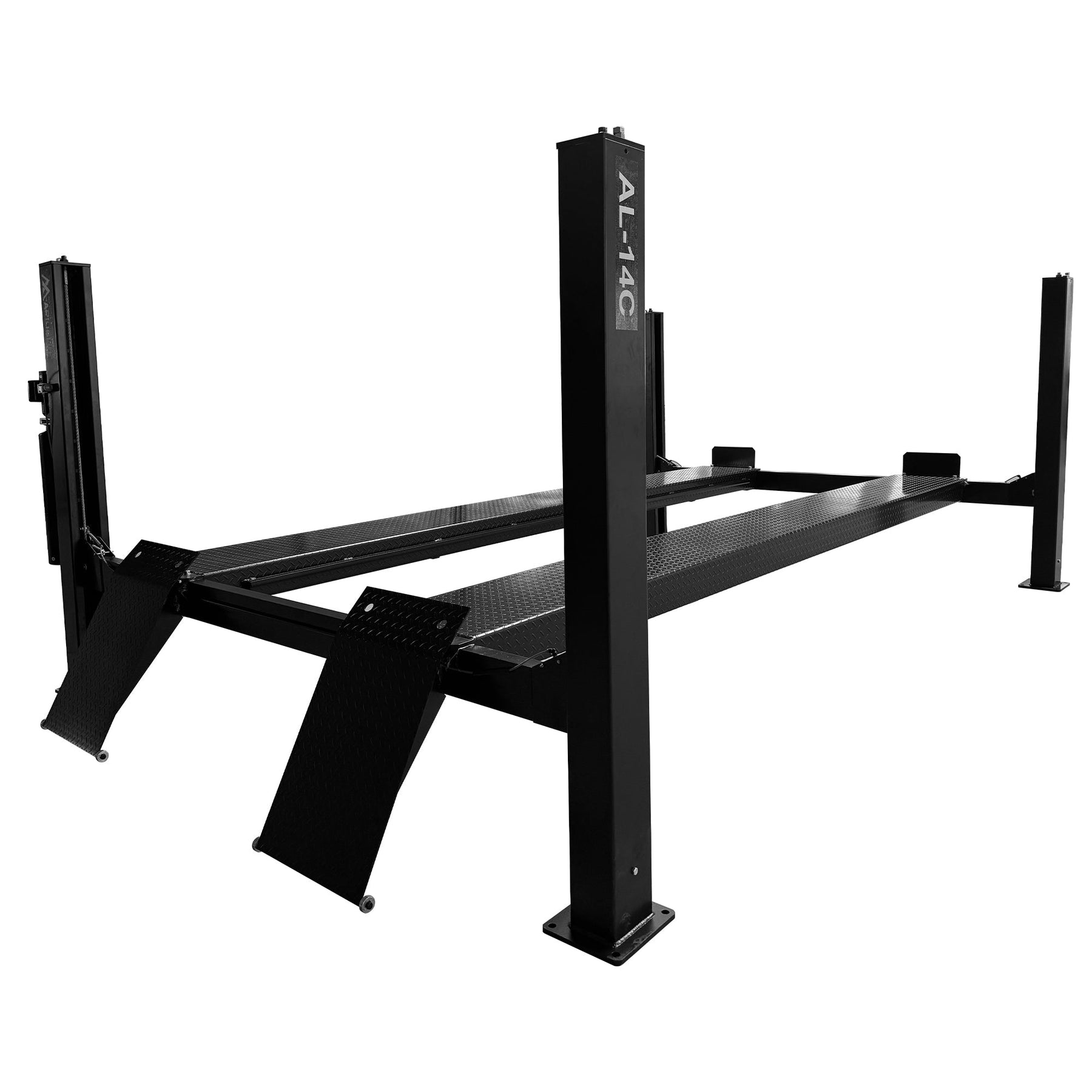

APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C
★★★★★
4.9 (18 Reviews)
- In stock, ready to ship
- Inventory on the way
Premium Quality
Built to last
30-Day Returns
Hassle-free
Free Shipping
On orders over £100
Secure Checkout
Encrypted and safe
All 4-Post Lifts and Jacks.
-
Drive Through Width 106 9/32″; Lifting Height: 77 11/32″; Overall Dimensions 243 1/2″L x 134 3/8″W x 106 9/32″H
-
Approach Ramps Included
-
Powder Coated Finish with Superior Corrosion Resistance
APlusLift AL-14C (HW-14AL, HW-14S) 4-Post 14,000LB Lift is designed and built to commercial grade standards. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.
APlusLift AL-14C (HW-14AL, HW-14S) 4-Post 14,000LB Lift package includes two approach ramps.
Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.
Specifications and Features |
|||||||||
| Model | AL-14C(HW-14AL) (This Model) |
AL-12A for Comparison |
|||||||
| Manual | HW-14AL Manual | AL-12A Manual | |||||||
| Lifting Capacity | 14,000 LB | 12,000 LB | |||||||
| Overall Length | 243 1/2″ | 230″ | |||||||
| Overall Width | 134 3/8″ | 130″ | |||||||
| Drive Through Width | 106 9/32″ | 113 5/8″ | |||||||
| Overall Height | 83″ | 87 1/2″ | |||||||
| Lifting Height | 77 11/32″ | 72″ | |||||||
| Clearance Under Runway | 70 27/32″ | 67″ | |||||||
| Runway Size | 203 15/16″L x 20″W | 196″L x 23″W | |||||||
| Width Between Runways | 43″ Inside-Inside, 83″ Outside-Outside | 34 1/2″ Inside-Inside,80 3/8″ Outside-Outside | |||||||
| Runway Gauge Steel | 15/64″ | 6 (13/64″) | |||||||
| Column Cross Section | 7 11/16″L x 6″W | 7″L x 5″W | |||||||
| Removable Approach Ramps Size | 27 31/32″L x 20 3/32″W | 32″L x 18 1/2″W | |||||||
| Lock Positions |
10 Positions
|
14 Positions:
|
|||||||
| Lifting Time | 100 seconds | 60 seconds | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 20A breaker) | 220V Single Phase 3HP 10A (recommend a 20A breaker) | |||||||
| Hydraulic Oil | 4.3-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Concrete Thickness | 4″ 3000psi | 4″ 3000psi | |||||||
| Shipping Weight | 3,000 LB | 3,300 LB | |||||||
| Shipping package size | 214″L x 25″W x 31″H | 201″L x 28″W x 25″H | |||||||
| Usage | Parking/Storage/Service | ||||||||
| Finish | Powder Coated Finish with Superior Corrosion Resistance | ||||||||
| Cable | Heavy duty 15/32″ diameter cables that reduce high stress on synchronization process and increase cable life | ||||||||
| Parts Included | 2 Removable Approach Ramps Included | Two Alignment Turn Plate Tables, One 6000LB Slidng Jack, Two Approach Ramps Included | |||||||
