APlusLift 14000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty – AP-14SR
★★★★★
4.9 (18 Reviews)
Regular price
£2,399.99
Sale price£2,199.99
Save £200.00
/
Tax included.
Shipping calculated at checkout.
- In stock, ready to ship
- Inventory on the way
Premium Quality
Built to last
30-Day Returns
Hassle-free
Free Shipping
On orders over £100
Secure Checkout
Encrypted and safe
All 2-Post Car Lifts
-
Single Point Safety Lock Release System
-
Two Set of 2 3/4″ Tall and 5 1/2″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish

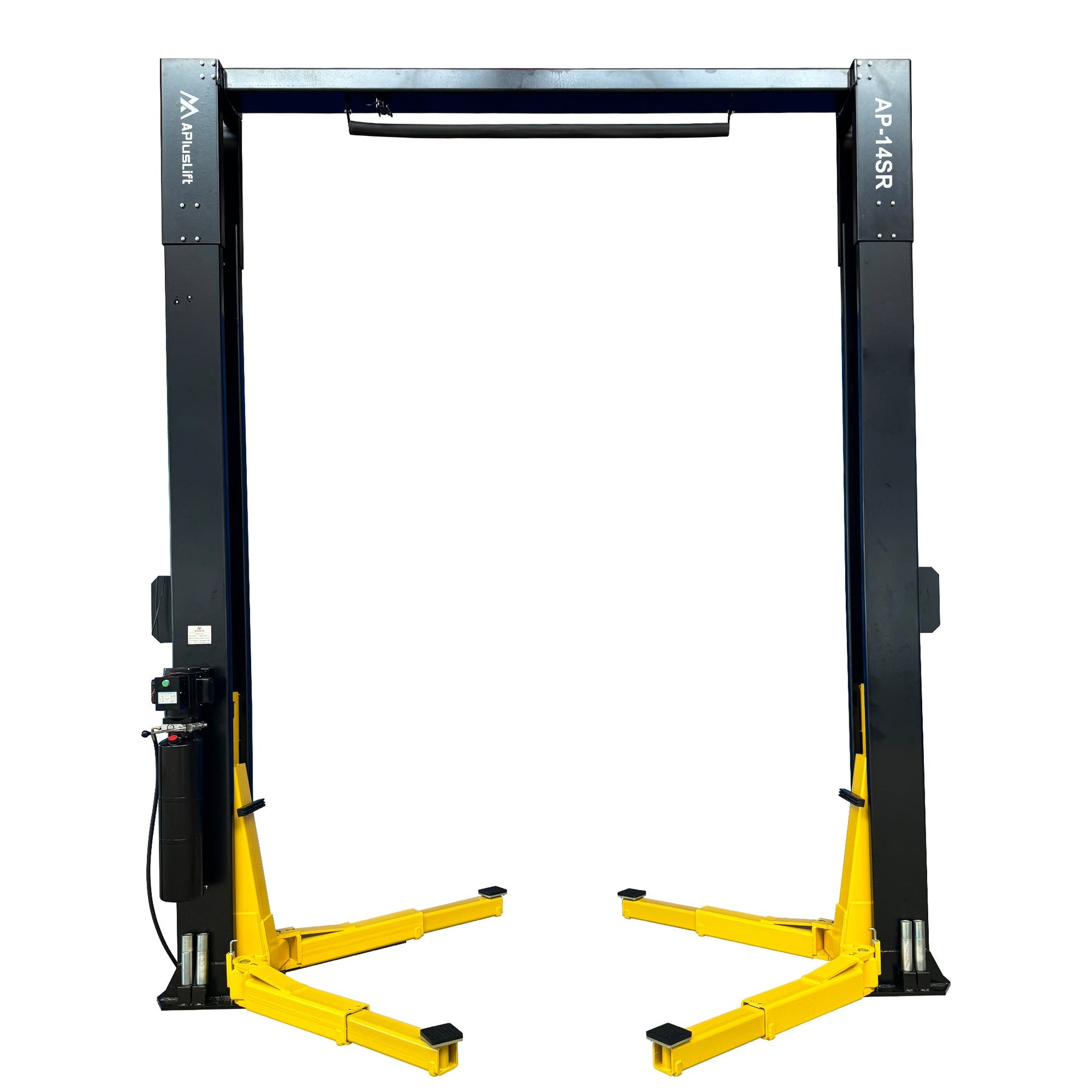

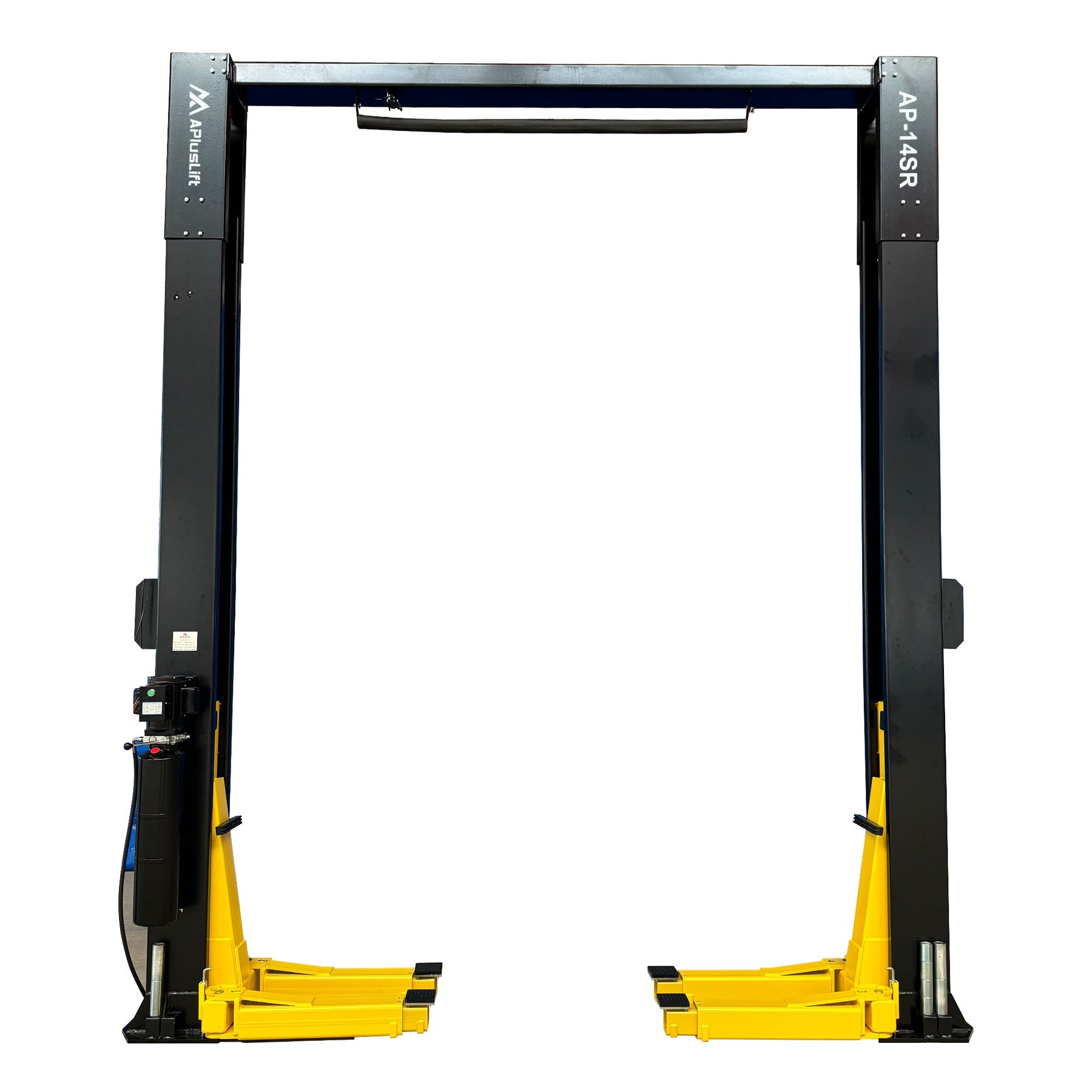

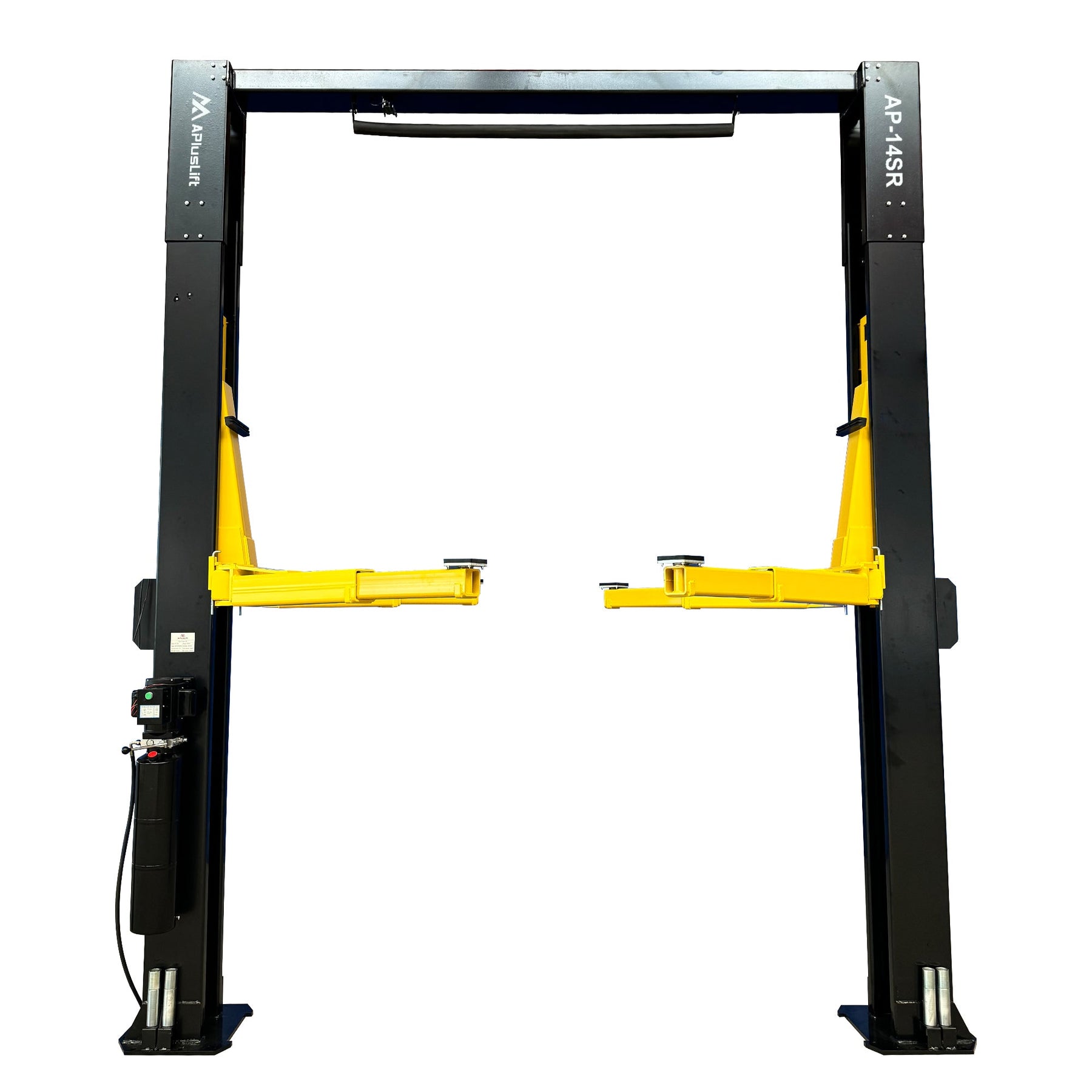

APlusLift AP-14SR is a 14,000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.
Specifications |
|||||||||
| Model | AP-14SR (This Model) |
AP-20SR (for Comparison) |
|||||||
| Manual | AP-14SR Manual | AP-20SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Lifting Capacity | 14,000 LB | 20,000 LB | |||||||
| Overall Height | 165 11/32″ | 170 13/32″ | |||||||
| Overall Width | 142 1/8″ | 155″ | |||||||
| Maximum Lift height with Truck Adapters | 79 19/32″ | 79 19/32″ | |||||||
| Maximum Lift height without Truck Adapters | 74 3/32″ | 74 3/32″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 6 11/16″ | 6 5/32″ | |||||||
| Drive Through Width (Carriage to Carriage) | 104 1/8″ | 113 1/16″ | |||||||
| Column Inside to Inside | 114 11/16″ | 123 3/8″ | |||||||
| Column Outside to Outside | 134 3/8″ | 147″ | |||||||
| Column Cross Section | 12 7/32″L x 9 27/32″W | 12 7/32″L x 11 13/16″W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | ||||||||
| Motor | 220V Single Phase 3HP (recommend a 20A breaker) | ||||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 5.3-6 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | ||||||||
| Shipping Weight | 2300 LB | 2900LB | |||||||
| Shipping package size | 150″L x 33″W x 21″H | 145 11/16″L x 32 11/16″W x28 15/16″H | |||||||
| Arm Assembly | Symmetrical Arm Assembly | ||||||||
| Front Arms | Straight Front 2 stages reach from 32 5/32″ to 49 7/32″ | Straight Front 2 stages reach from 37″ to 59 1/16 | |||||||
| Back Arms | Straight Rear 2 stages reach from 32 5/32″ to 49 7/32″ | Straight Rear 2 stages reach from 37″ to 59 1/16″ | |||||||
| Column Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Steel Thickness | 1/4″ | 13/32″ | |||||||
| Carriage Yoke Thickness | 13/32″ | 13/32″ | |||||||
| Arm Steel Thickness | 5/16″ | 5/16″ | |||||||
| Base Plate Steel Thickness | 5/8″ | 25/32″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
|||||||
| Other Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel | ≥13″ thick ≥C25 strength |
|||||||
| Model | AP-14SR (This Model) |
HW-12HD (for Comparison) |
|||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 3″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
