APlusLift 11000LB 4-Post Alignment Lift- AL-12A

All 4-Post Lifts and Jacks.

• Two Alignment Turn Plate Tables and A 6000LB Rolling Jack Included

• Approach Ramps Included

• Powder Coated Finish with Superior Corrosion Resistance

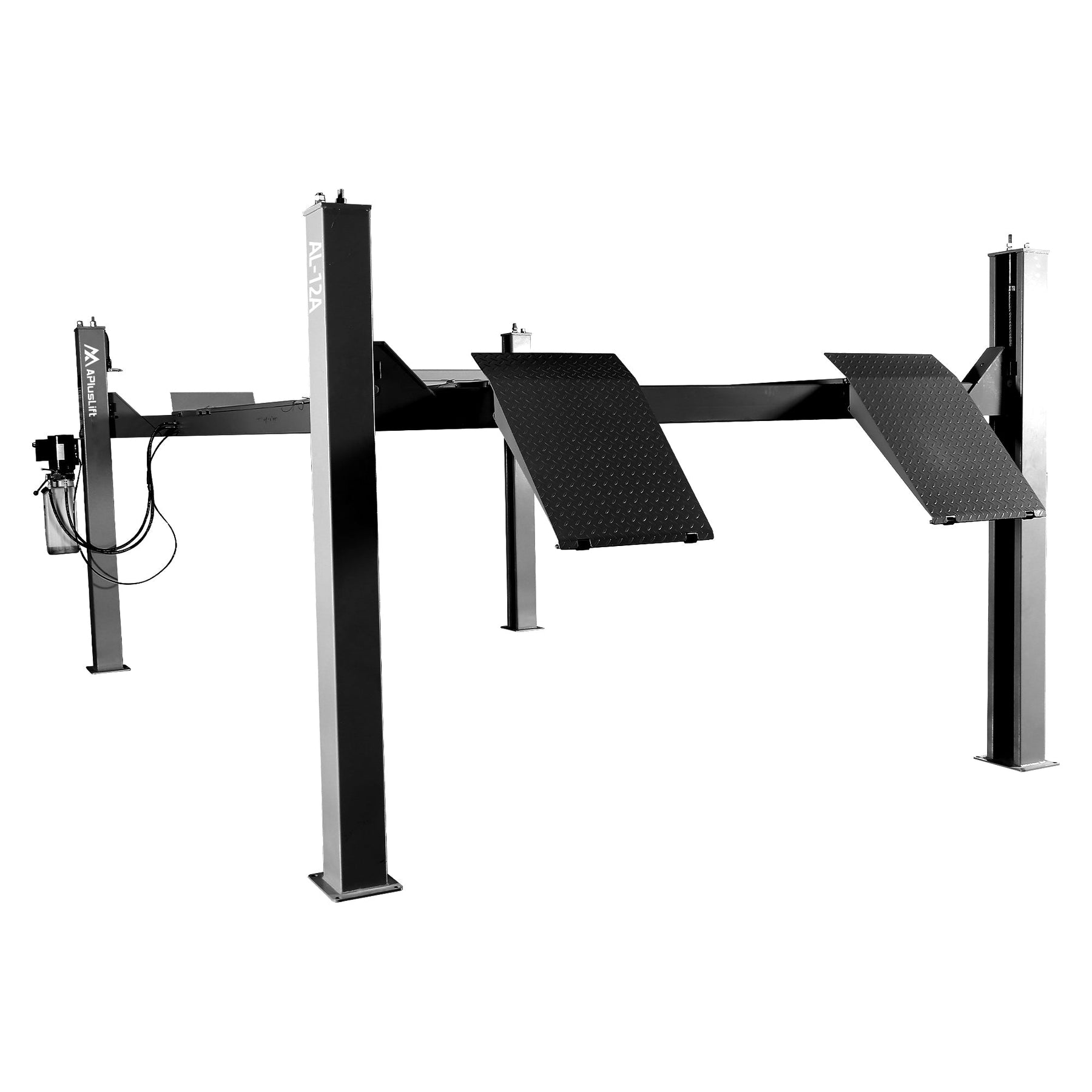

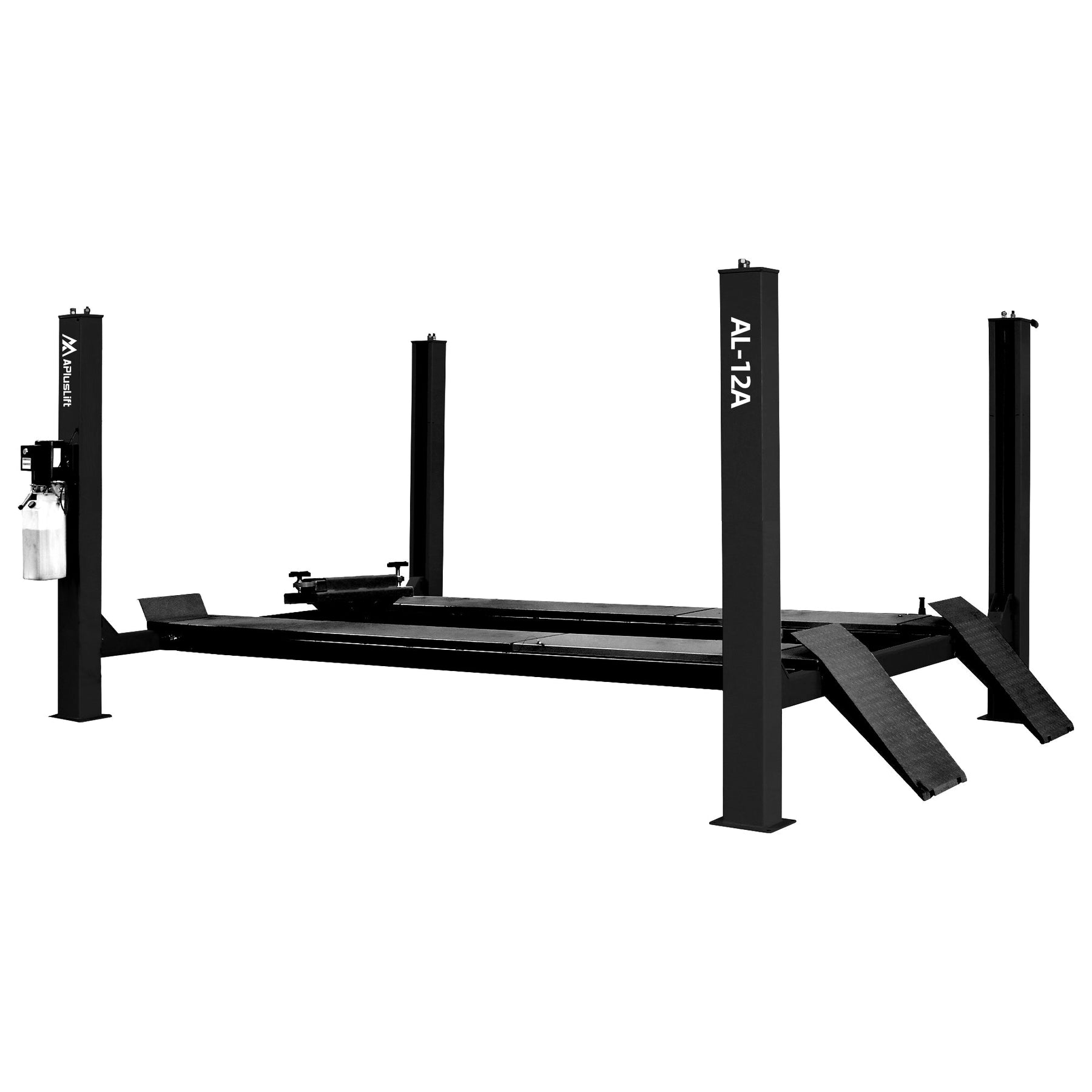

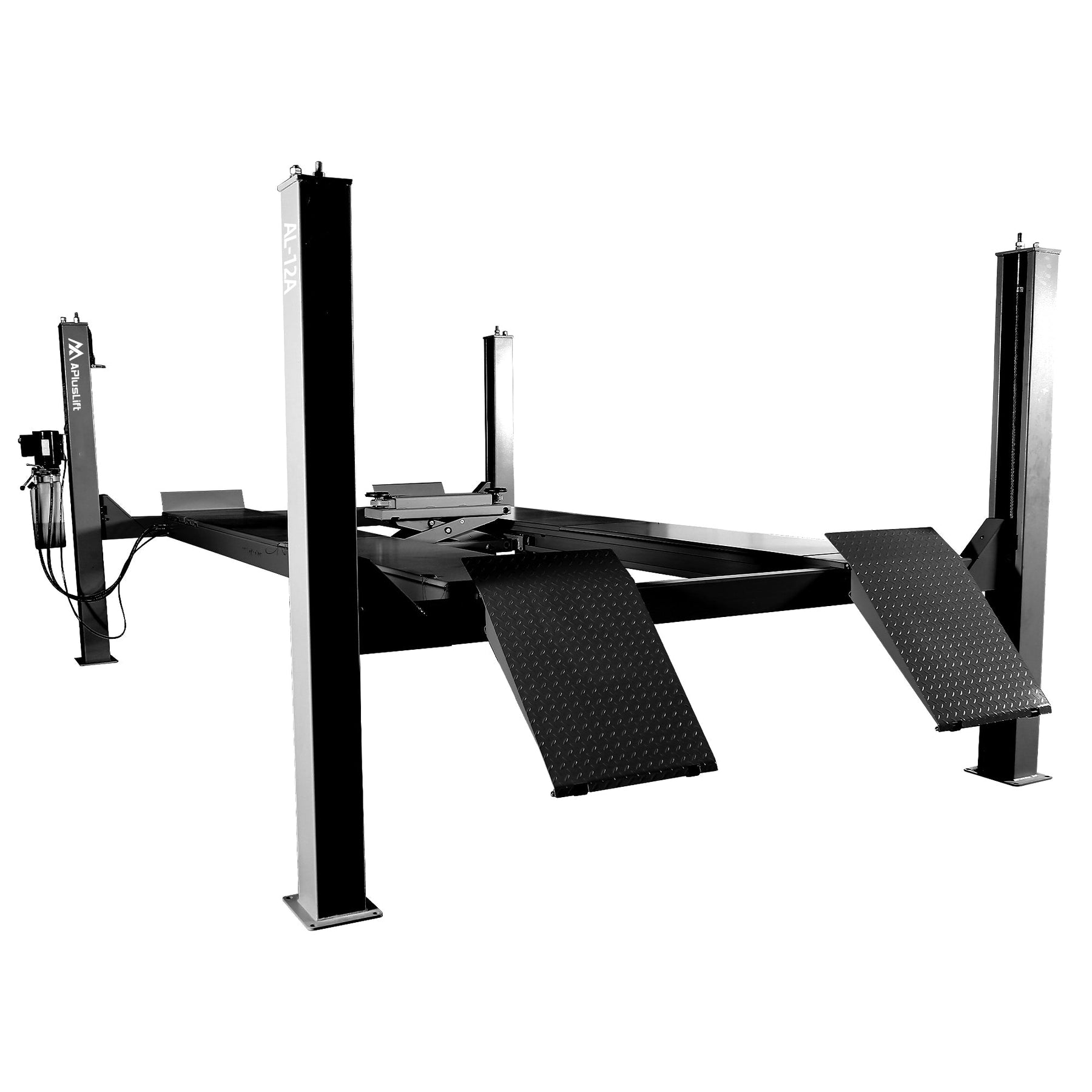

APlusLift AL-12A 4-Post 11,000LB Lift is designed and built to commercial grade standards. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

APlusLift AL-12A 4-Post 11,000LB Lift package includes two alignment turn plate tables, one 6000LB rolling jack, and two approach ramps.

Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.

Specifications and Features

• Installation Manual
• Lifting Capacity: 11,000LB
• Usage: Parking/Storage/Service
• Air operated (pneumatic) safety lock release
• Powder Coated Finish with Superior Corrosion Resistance
• Two Alignment Turn Plate Tables, One 6000LB Rolling Jack, Two Approach Ramps Included
• Overall Length: 230″
• Overall Height: 87 1/2″
• Overall Width: 130″
• Lifting Height: 72″
• Clearance Under Runway: 67″
• Width between Posts: 113″
• Runway Size: 196″L x 23″W
• Width Between Runways: 34 1/2″
• Runway Gauge Steel: 6
• Lock Positions: 14
• Lifting Time: 60 seconds
• Motor: 220V Single Phase 3HP 10A (recommend a 20A breaker)
• Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
• Concrete Thickness: 4″
• Shipping Weight: 3,300LB
• Shipping package size: 201″L x 28″W x 25″H
