APlusLift 10,000LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty – HW-10KOH-A
★★★★★
4.9 (18 Reviews)
Regular price
£1,299.99
Sale price£939.99
Save £360.00
/
Tax included.
Shipping calculated at checkout.
- In stock, ready to ship
- Inventory on the way
Premium Quality
Built to last
30-Day Returns
Hassle-free
Free Shipping
On orders over £100
Secure Checkout
Encrypted and safe
All 2-Post Car Lifts
-
Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
One Set of 4″ Tall Truck Adapters Included; 6’9″ Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish
-
Optional Parts: 2″ Adjustable Frame Cradle Pads, 6″ Truck Adapters, Wheel Support Adapters, Base Plate Extension Kit, and 2 Ft Height Extension Kit.

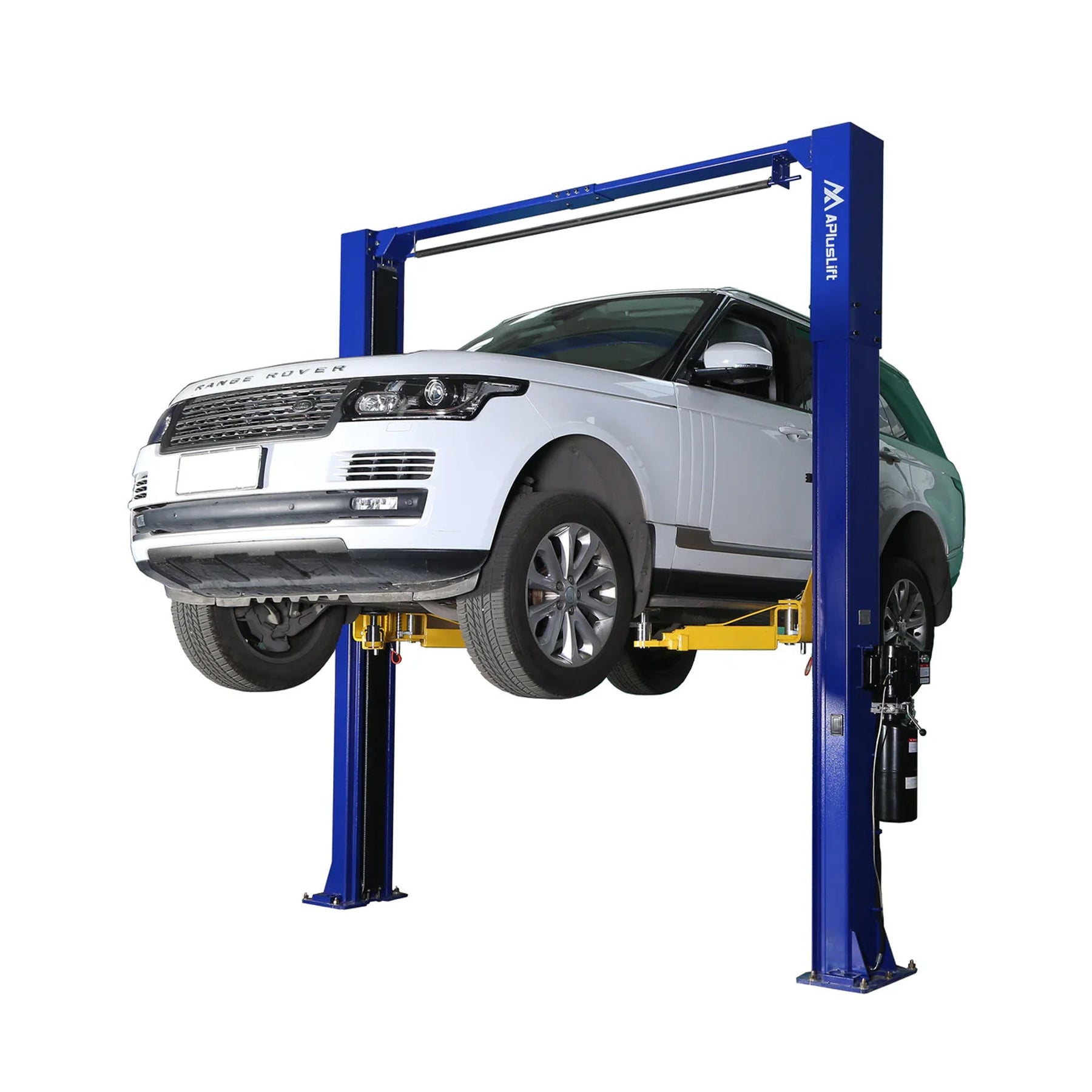

APlusLift HW-10KOH-A is a 10,000 LB overhead car lift with a double “S” column design. The HW-10ASY is a 10,000LB overhead comparison model with a single-point release.
Newman’s MOT Services delivers within the United Kingdom. Orders are normally processed within 2–5 business days. Standard delivery normally takes 5–8 business days after processing. Tracking information is provided where a tracked service is used.
Specifications |
|||||||||
| Model | HW-10KOH-A (This Model) |
HW-10ASY (for Comparison) |
|||||||
| Manual | HW-10KOH-A Manual | HW-10ASY Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Double Point Release | Single Point Release | |||||||
| Lifting Capacity | 10,000 LB | 10,000 LB | |||||||
| Overall Height | 143 3/16″ | 143 3/16″ | |||||||
| Overall Width | 134 5/16″ | 139 1/8″ (standard) 140 15/32″ (post rotated) |
|||||||
| Maximum Lift height with Truck Adapters | 81″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 75″ | 75″ | |||||||
| Maximum lift height from bottom of the arm to the ground | 71″ | 71″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) | 100″ | 104″ (symmetric) 97″ (asymmetric) |
|||||||
| Column Inside to Inside | 109″ | 113″ (symmetric) 107″ (asymmetric) |
|||||||
| Column Outside to Outside | 123″ | 127″ (symmetric) | |||||||
| Column Cross Section | 11″L x 7″W | 11″L x 7″W | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 20A breaker) | 220V Single Phase 3HP 10A (recommend a 20A breaker) | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | 3-5 gallons AW32/AW46 (not included) | |||||||
| Time to full rise | 50 seconds | 50 seconds | |||||||
| Shipping Weight | 1470 LB | 1470 LB and 120 LB | |||||||
| Shipping package size | 113″L x 22″W x 40″ H |
|
|||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
| Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Arm Assembly | Combo (symmetrical and asymmetrical) Arm Assembly | ||||||||
| Front Arms | Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ | ||||||||
| Back Arms | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | ||||||||
| Column Steel Thickness | 13/64″ | ||||||||
| Carriage Steel Thickness | 15/64″ | ||||||||
| Carriage Yoke Thickness | 9/16″ | ||||||||
| Arm Steel Thickness | 15/64″ | ||||||||
| Base Plate Steel Thickness | 5/8″ | ||||||||
| Model | HW-10KOH-A (This Model) |
HW-10ASY (for Comparison) |
|||||||
Features
- CE Certified Lift Structure and Hydraulic System
- Third-party tested with a dynamic load capacity of 115%
- Third-party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double-point safety lock release
- Double seal rings protecting PU material
- Carriage material Q355 (ASTM A572), stronger than normal Q235 steel
- Lifting operation by pressing the “UP” button on the motor
- Manual lowering operation by pressing the lever
- Relief valve built-in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built-in power pump to prevent overloading
- Door guard protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
